Q195 Galvanized Coil

Category:

Galvanized Coil

Keyword:

Galvanized Coil Q195 Galvanized Coil

Galvanized coil, a thin steel sheet that is dipped into a molten zinc bath to adhere a layer of zinc to its surface. It is mainly produced by the continuous galvanizing process, in which rolls of steel sheet are continuously dipped into a bath of molten zinc to make galvanized steel sheet; alloyed galvanized steel sheet. This steel sheet is also manufactured by the hot dipping method, but immediately after leaving the bath, it is heated to about 500°C to produce an alloyed coating of zinc and iron. This type of galvanized coil has good paint adhesion and weldability.

Email: adminqiao@kgjtsteel.com

WhatsApp: +86-15508611310

Phone: +86-15508611310

Online message

Q195 Galvanized Coil

Manufacturer JIS DIN high-quality electro-galvanized steel coil

Product name	Galvanized Coils
Place of Origin	Jinan, China
Type	Steel Coil
Standard	AiSi, ASTM, bs, DIN, GB, JIS
Certificate	ISO9001
Grade	SPCC, SPCD, SPCE/DC01. DC02. DC03/ST12,Q195. Etc
Thickness	0.1-5.0mm
Surface structure	anti-finger print /skin pass/oiled/ dry/chromated
Size	Customized according to customer needs
Tolerance	±1%
Processing Service	Bending, Welding, Decoiling, Cutting, Punching, Welding
Invoicing	by actual weight
Delivery Time	8-14 days
Technique	Hot Rolled Based, Cold Rolled
Port	Tianjin
Packaging Details	in bundles, in bulk, customized packing.

Chemical composition

Al	Zn	Si	Fe	Cu	Cd	Pb	Sn	Ni	Ti +Ba+Cr
55-58	41-43	1.5-2	0.25	0.03	0.05	0.01	0.05	0.05	0.05

Mechanical behavior

grade	Yield strength, MPa	Tensile strength of MPa	elongation A%≥
DX51D+Z/ZM/AZ/AM	240-380	270-500	22
DX52D+Z/ZM/AZ/AM	140-300	270-420	26
DX53D+Z/ZM/AZ/AM	140-260	270-380	30
DX54D+Z/ZM/AZ/AM	120-220	260-350	36
S220GD+Z/ZM/AM	220	300	20
S250GD+Z/ZM/AZ/AM	250	330	19
S280GD+Z/ZM/AM	280	360	18
S300GD+AZ/AM	300	380	18
S320GD+Z/ZM/AM	320	390	17
S350GD+Z/ZM/AZ/AM	350	420	16
S450GD+AZ/AM	450	480	15
S550GD+Z/ZM/AZ/AM	550	550	－

Galvanized surface options

Coating type	Recommended coating weight
Aluminum zinc alloy	30/40/50/60/75/90/100/150
A: The coating mass is 50g/㎡, which is approximately equal to the coating thickness of 13.3pm.

Project	Classification	Symbol
Coating type	Aluminum zinc alloy	AZ

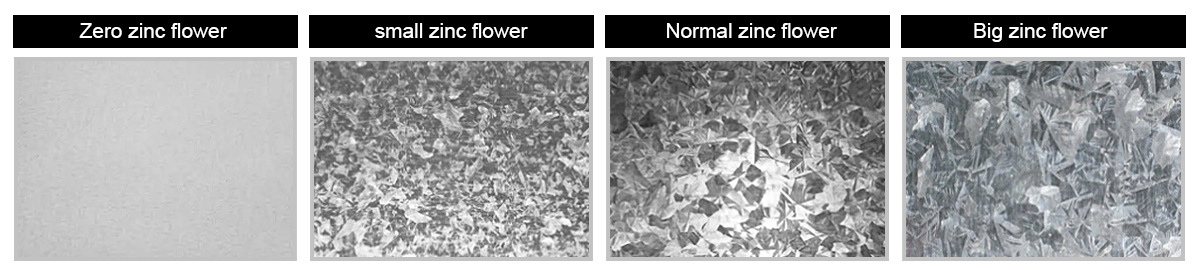

Surface finish	regular sequins	R
	Minimize sequins	M
	Skin pass	S
Surface treatment	Chromate passivation	c
	Non-chromate passivation	C5
	Chromate passivation + oiling	CO
	Chrome-free passivation + oiling	CO5
	Anti-fingerprint	N
	Chromate-free anti-fingerprint	N5
	Chromate-free,highly weather-resistant and anti-fingerprint	NW
	Oiling	0
	No treatment	U

Material comparison

Chinese standard	European standard	American standard	Japanese standard
DC51D+AZ	DX51D+AZ	CS Type B, Type C	SGLCC
DC52D+AZ	DX52D+AZ	DS	SGLCD
S250GD+AZ	S250GD+AZ	255	-
S300GD+AZ	-	-	-
S350GD+AZ	S350GD+AZ	345	Class1 SGLC490
S550GD+AZ	S550GD+AZ	550	SGLC570

Factory real shot

The company is equipped with a perfect product production line, the mainequipment includes cutting machine, bending machine, punch machine, water jetcutting machine, polishing machine, plate shear machine, wire drawing machine,

COPPER ALLOY

Kungang Steel (Shandong) Group Co., Ltd provides galvanized sheets of various materials. Common thickness: 0.12mm-6.00mm, common width: 600mm-1500mm. The main materials are: DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, etc. We can also provide customized services for your project. All products in stock in the warehouse can be delivered immediately upon receipt of payment, and large quantities are preferred.
